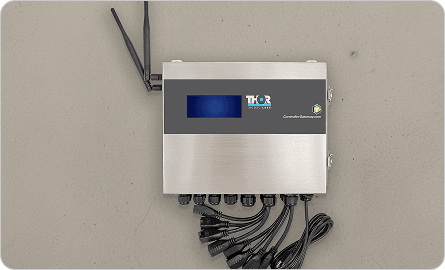

Thor Digital Controller Model L800

Cooling Tower / Boiler / Water Treatment / Chemical Feed Digital Controller

Introducing THOR, the Digital Controller that is part of a fully connected end-to-end platform. THOR, the computer that controls, supports most all of your control applications. THOR is digital ready out of the box while supporting traditional analog inputs. Offering a wide variety of feed options with intuitive programming makes THOR the future of control. THOR is what you have been looking for, a fully integrated control and management solution all in one.

Stunning Features

Application

THOR supports a wide range of industrial control and feed applications. Advanced software with intuitive programming supports remote and onsite management for all of your system needs.

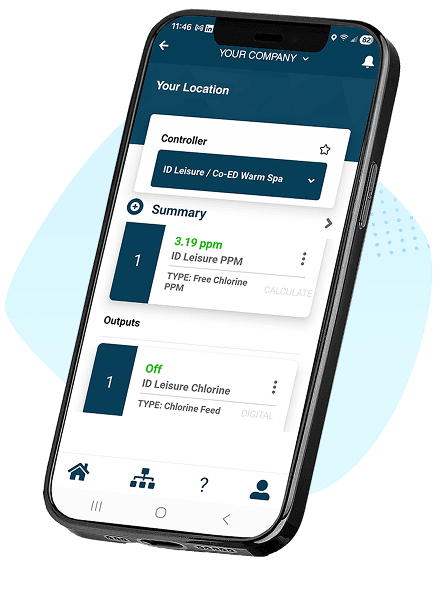

Single and Enterprise industrial applications can be managed and monitored using ZEUS, ERP’s cloud software. Programming, Monitoring, Analytics, Notifications and more are all included with the THOR Digital Controller. One solution to manage one or all of your field assets.

Technical Specifications

OPERATIONAL:

• CAT 1 cellular modem with dual antenna
• Ethernet (rj45) – default DHCP
• Modbus TCP/IP
• User configurable IP settings – supports static IP
• 4 – 20 Character LCD Screen
• 1 Ethernet port
• 1 RS232 Port (rj45)

MECHANICAL:

• Enclosure: 304 Stainless steel welded construction
• Nema 4x: paddle lock loop latches
• Dimensions: 10x10x4
• Shipping weight: approx. 7 lbs.

ELECTRICAL:

• Input: 100 – 240 VAC 50/60Hz
• Control: Equal to input voltage – Control Relays jointly
fused at 6 amps
• Loop Power: 24vdc at 2.5 amps – max 58 watts

ENVIRONMENTAL:

• Ambient temperature: 0°- 50° C
• Relative Humidity: 0 -90% non-condensing

Universal Sensor Input

• Supports most 24vdc loop powered sensors
• Support dry contact (pulse, hZ, pulse width, contact)
• Pyxis Digital Sensors

Digital Probe Benifits

Probe Level Diagnostics

Supports Pyxis Brand Digital Sensors

Controller-Based Programming & Calibration
